NOTE: there is rarely any "standard" or "typical" look for a wood so take what's in this table with a grain of salt
the REST of the pictures on this page will give you a better overall feel for this wood

basswood / Tilia spp.
(see Fact Sheet for names: basswood / lime / linden)

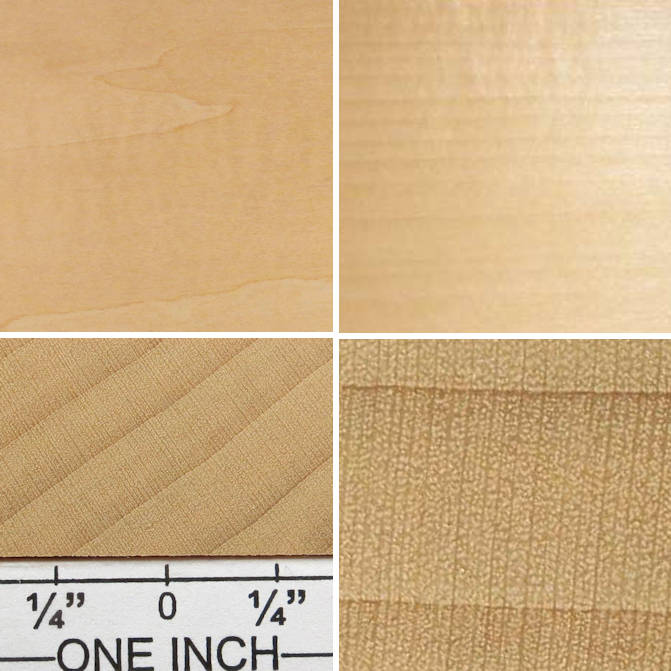

3" x 3" flat cut, 3" x 3" quartersawn, 3/4" wide end grain, and a 1/4" x 1/4" end grain closeup.

Diffuse porous with very small pores, marginal parenchyma. Rays are obvious at 10X and growth ring boundaries are clear.

Although somewhat boring because of the uniformity of the grain pattern (there sometimes almost isn't one), this is a favorite wood of carvers BECAUSE it has a very uniform grain. For pieces that are going to be painted after carving, it's a great wood but if you want a wood that has some character, this isn't it.



my samples:
NOTE: these pics were all taken in very bright incandescent lighting ("soft white" at 2700K)
colors will vary under other lighting conditions


both sides of a sample plank of amur linden / Tilia amurensis --- HUGE enlargements are present.

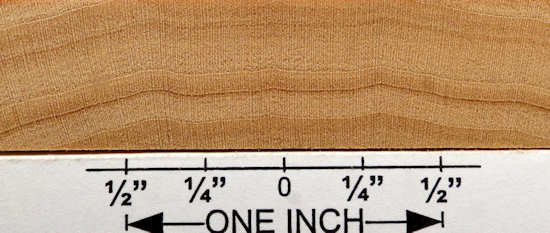

end grain and HIGH GRIT END GRAIN CLOSEUP of the piece directly above


both sides of a sample plank of little-leaf linden / Tilia cordata


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of little-leaf linden / Tilia cordata --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above; this clearly shows the fluted grain that sometimes happens in basswood (and more often in butternut)


both sides of a sample plank of little-leaf linden / Tilia cordata --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


both sides of a sample plank of English lime / Tilia glabra --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of basswood (english lime) / Tilia glabra --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.

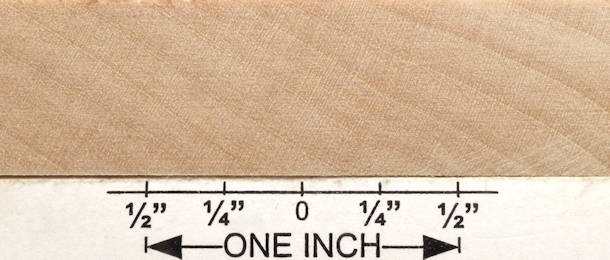

end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of basswood (english lime) / Tilia glabra --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


both sides of a sample plank of English lime / Tilia glabra --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above

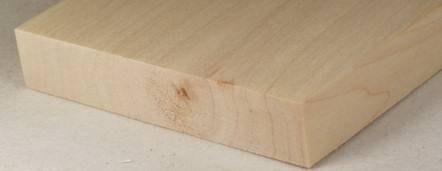

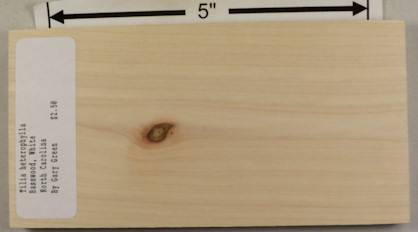

both sides of a sample plank of white basswood / Tilia heterophylla --- HUGE enlargements are present


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above; this clearly shows the fluted grain that sometimes happens in basswood (and more often in butternut)


both sides of a sample plank of white basswood / Tilia heterophylla --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of white basswood / Tilia heterophylla --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


first face and the end grain of a sample of basswood / Tilia spp. --- This part of a collection which is discussed here: COLLECTION B


the second face, before and after slicing off 1/8" showing how the patina from aging is only surface deep.


end grain closeup and END GRAIN UPDATE from directly above.

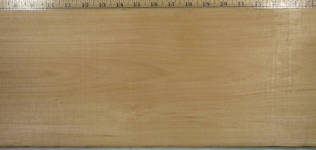

3 sections and 2 closeups of a 12' long plank


plank and end grain


end grain closeup and END GRAIN UPDATE of the piece directly above

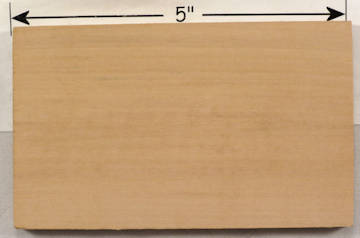

both sides of a small sample plank


end grain and HIGH GRIT END GRAIN CLOSEUP of the piece directly above


plank and closeup


planks --- the relatively tan color of this set compared to the slightly more white color of the set below is correct. Although bought at the same time, the two lots (one was 1/4" thick and one was 1/2") were clearly from different trees.


planks




sample plank to me as American basswood / Tilia americana --- It was not labeled curly but it clearly is. HUGE enlargements are present. I was not previously aware of the existence of curly basswood and I have not seen other examples of it so I do not consider this sample plank to be a good representation of the species (that is, the species is not normally curly), but that lack of representativeness without so specifying is fairly common in the sample planks I got from the IWCS. Also, the plank is a glue-up of two pieces and this is NOT the way sample planks are supposed to be done, but this kind of crap is typical of the IWCS samples I got. (Vendors DO do this for shrubs where there just isn't a big enough piece to make a full sized sample, but doing it with something as common and large as basswood is abnormal)


end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of Carolina basswood / Tilia americana var caroliniana --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site. NOTE: this is NOT a Tilia at all. I'll get it sorted out eventually.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above

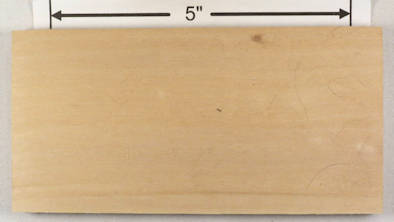

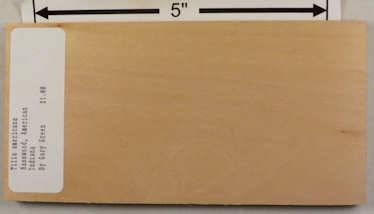

both sides of a sample plank of American basswood / Tilia americana


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of American basswood / Tilia americana --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


first face and the end grain of a sample of basswood / Tilia americana. This part of a collection which is discussed here: COLLECTION A


the second face, before and after sanding, showing how the patina from aging is only surface deep.


end grain closeup and END GRAIN UPDATE from directly above.


both sides of a sample of basswood / Tilia americana. This part of a collection which is discussed here: COLLECTION A and is one of the few pieces from that collection that were too skinny to do end grain pics.


both sides of a sample plank of American basswood / Tilia americana --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


both sides of a sample plank of curly American linden / Tilia americana --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site. I note that the vendor has the name as "lindem" which is just weird, but typical of the utter carelessness of this vendor when it comes to labels. Although the curly is VERY weak, it IS there.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of English linden / Tilia platyphyllos --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a cutoff with some blue stain (possibly mineral stain) and a little white rot. This was sent to me for ID by Clayton Ellis of the Wood Barter forum. I Identified it as basswood / Tilia spp.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


"Dimpled" basswood

The first set of pics in this section are all of the same small chunk of "dimpled" basswood generously contributed to the site by Rob Mathison, whom I thank for this and other contributions to the site. Rob calls it "dimpled" (and I can't think of any better description) because it has dimples in the face grain that are caused by an effect inside that is very similar to (perhaps identical to) that of hard-wood "bear-claw" figure (seen also in red oak, hard maple, and others) where there are medullary rays that look almost like little in-grown branches inside the wood and that cause indented grain. That is, some of the rays get very dark and dense, unlike the rays around them, and they distort the growth rings in the way that is called "indented grain". I have no idea what causes this, but it's a neat effect and I have posted more pics of this piece than I would normally have for a piece this size, to show the effect throughout. If anyone knows what causes this, I'd love to hear from you. HUGE enlargements are present for all of these pics.


face grain shots


end grain shots


end grain closeups


and end grain closeup and the corresponding END GRAIN UPDATE


face grain closeups


side grain closeups

LATER: another contribution of the same type from Rob


both sides of a another couple of small pieces of "dimpled" basswood / Tilia spp. --- HUGE enlargements are present. These, like the ones directly above, were contributed to the site by Rob Mathison whom I thank for this and other contributions to the site.


end grain and end grain closeup of one of the pieces directly above


END GRAIN UPDATE from directly above

end of "Dimpled" basswood pics



veneer


The Wood Book pics


flat cut, quartersawn, end grain
basswood (Tilia americana, also listed as American linden, lime-tree, and bee-tree) from The Wood Book --- both levels of enlargement are present for all 3 views

web pics:


basswood / Tilia americana end grain closeup [scale unknown but I'm guessing about 20X] clearly showing numerous multi-directional pore multiples in a diffuse porous organization with marginal parenchyma and clear rays of varying widths


log section listed as "white basswood"


log end listed as American basswood / Tilia americana --- I'm doubtful about the color; the original was a ridiculous bright yellow which I have toned down in the hopes of making it look at least somewhat realistic.


raw lumber


end grain identified as European linden / Tilia platyphyllos


plank listed as basswood / Tilia americana


planks


plank listed as Dutch linden


plank listed as English lime


planks and turning stock listed as English lime / Tilia vulgaris


planks listed as European lime


plank listed as linden / Tilia spp.


plank listed as linden / Tilia cordata


plank listed as European lime


planks listed as lime


plank listed as basswood / tilia spp.


planks that were not listed with any common name but identified as Tilia spp.


planks specifically identified as Tilia americana


planks showing knots and mineral stain


slab and end grain


slab and end grain


turning stock


two views of a curly plank


curly plank --- this is by far the most curl I've ever seen in basswood. So much so, in fact, that I am doubtful that this IS basswood.


carving stock


veneer


veneer listed as lime


veneer listed as lime / Tilia spp


veneer that was listed as lime / basswood / linden / Tilia cordata / Tilia europaea / Tilia vulgaris --- well, I'd say that pretty much covers it, it's definitely wood. Actually, I'd guess the plethora of common names is to demonstrate that they are all used interchangeably and the the species mentioned could be called any one of the common names. That's been my experience as well.


burl veneer --- boy, howdy ! Now there's a burl that's at extreme odds with the normal wood of the same tree. I've never seen basswood burl, so can't say from experience that that's what this really is.


turning blanks


guitar back


9" tall (and 3" wide) English lime vase by Steve Earis, who tells me he turned it so thin that you can see daylight through the side, and he is particularly pleased with it as it was his first vase. Both levels of enlargement are available, so you can see the grain quite clearly. My thanks to Steve for this and many other contributions to the site.


lime bowl also by Steve Earis (see the vase directly above)


linden bowls turned and photographed by Tom Pleatman, whom I thank for these pics and other contributions to the site. Big enlargements are present.
